Uniform thin-wall magnesium structures down to 0.6 mm, approximately 30% lighter than comparable aluminum frames.
Key-dimension capability is evaluated against the drawing, material, geometry and inspection requirements.
Conversion-coated magnesium: corrosion protection with RoHS compliance.
72–96 h neutral salt spray (NSS) · RoHS compliant
Test conditions and acceptance criteria are confirmed for each project.
View surface-treatment capabilities and examples ↗

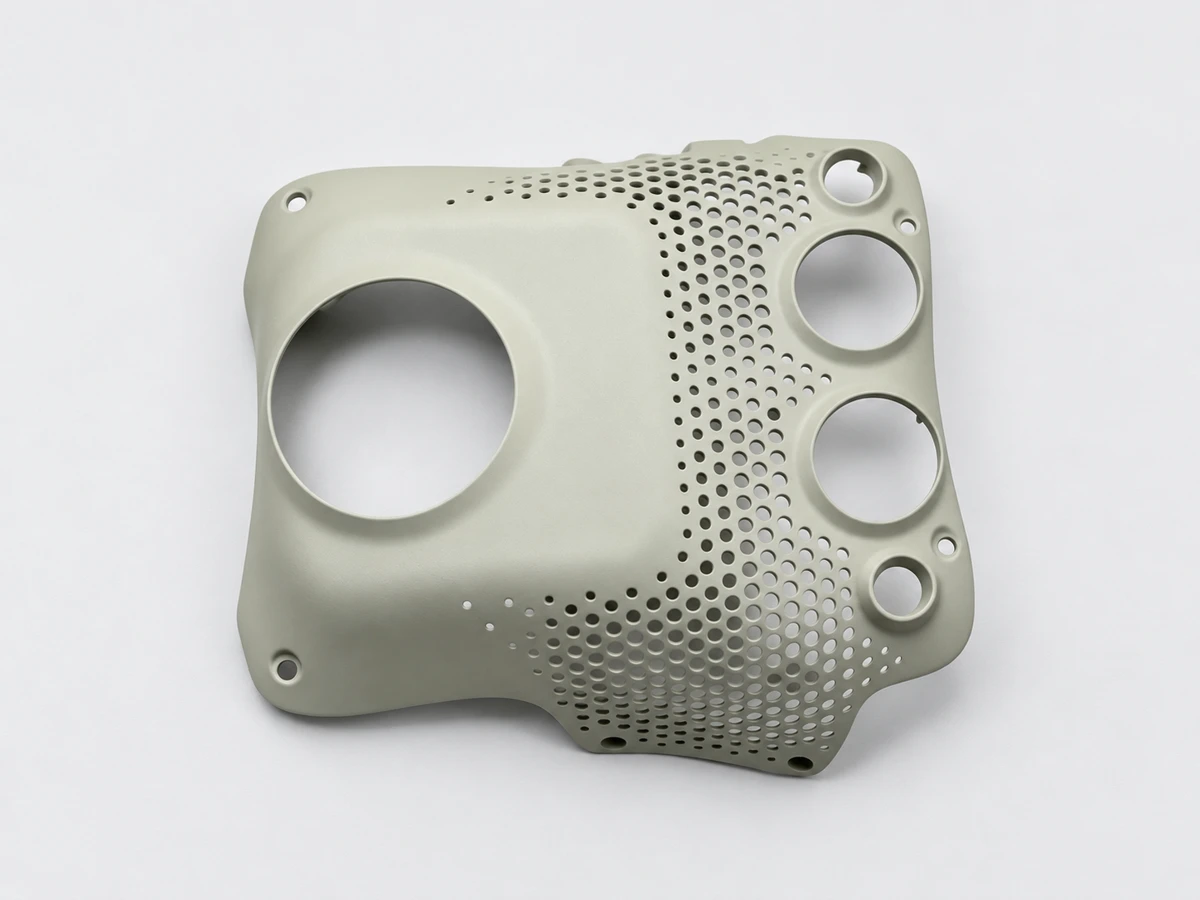

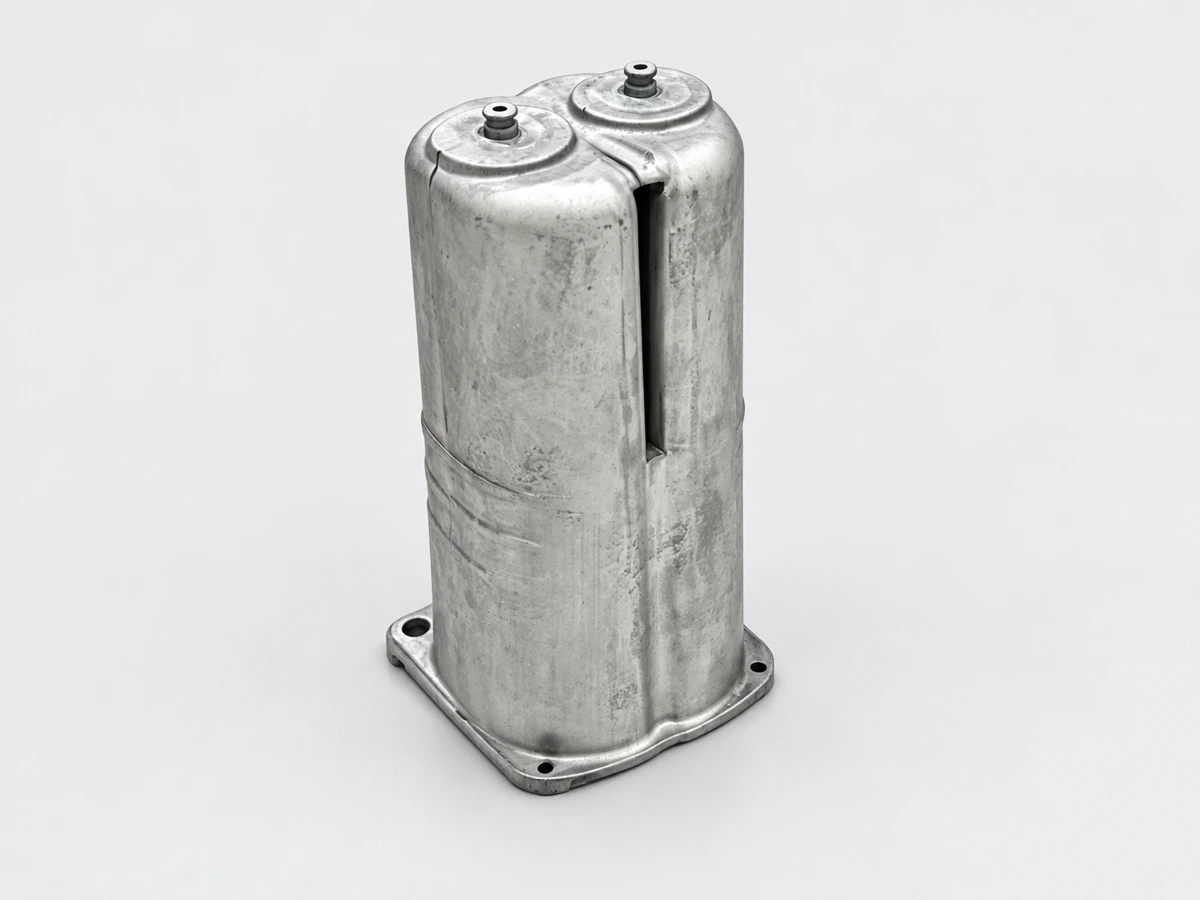

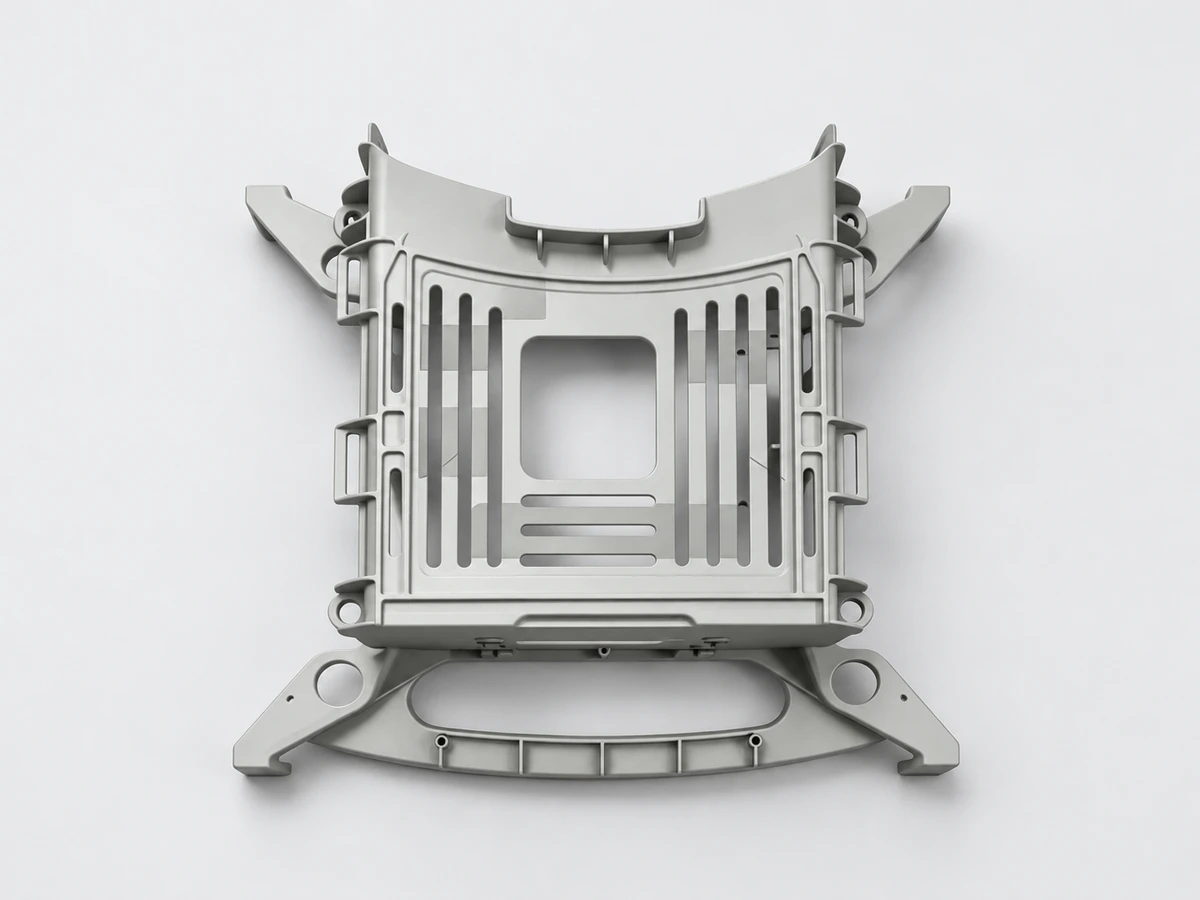

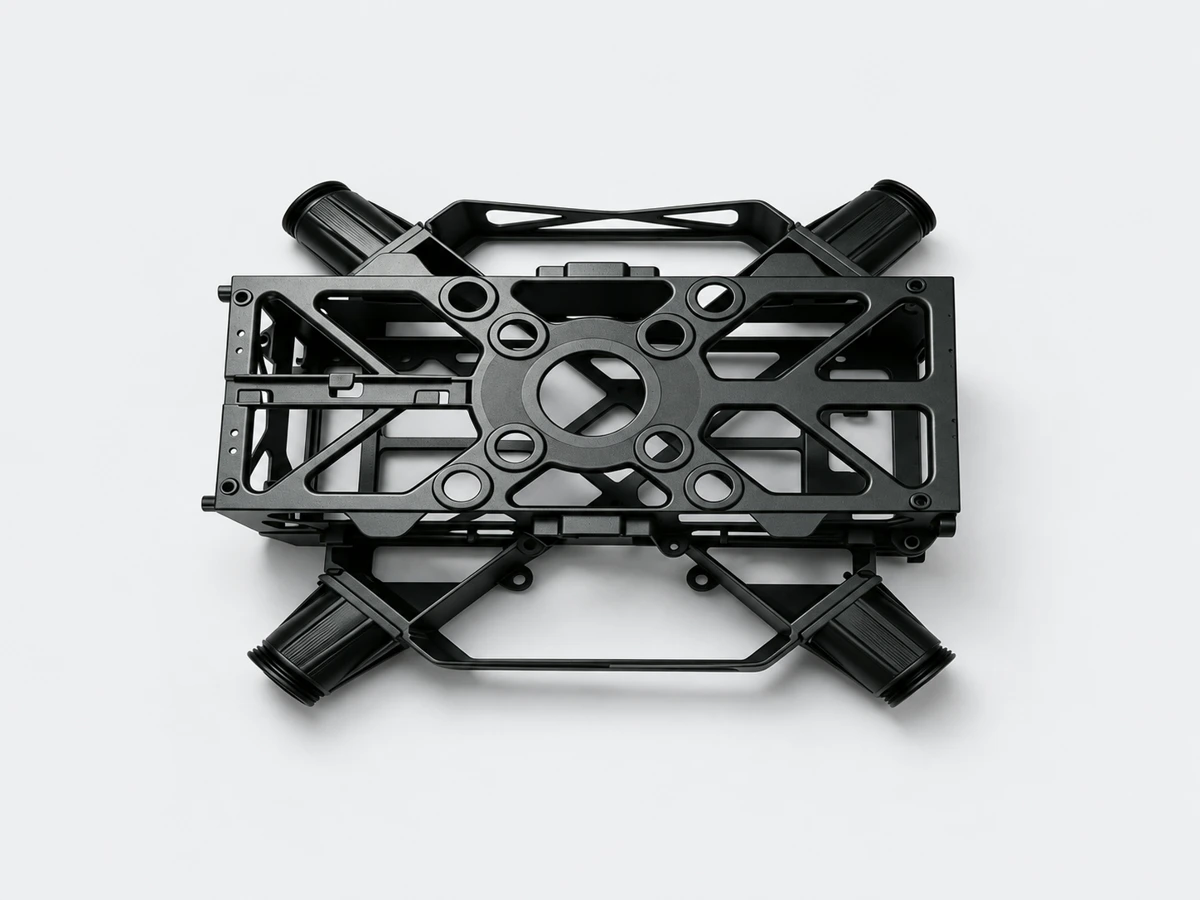

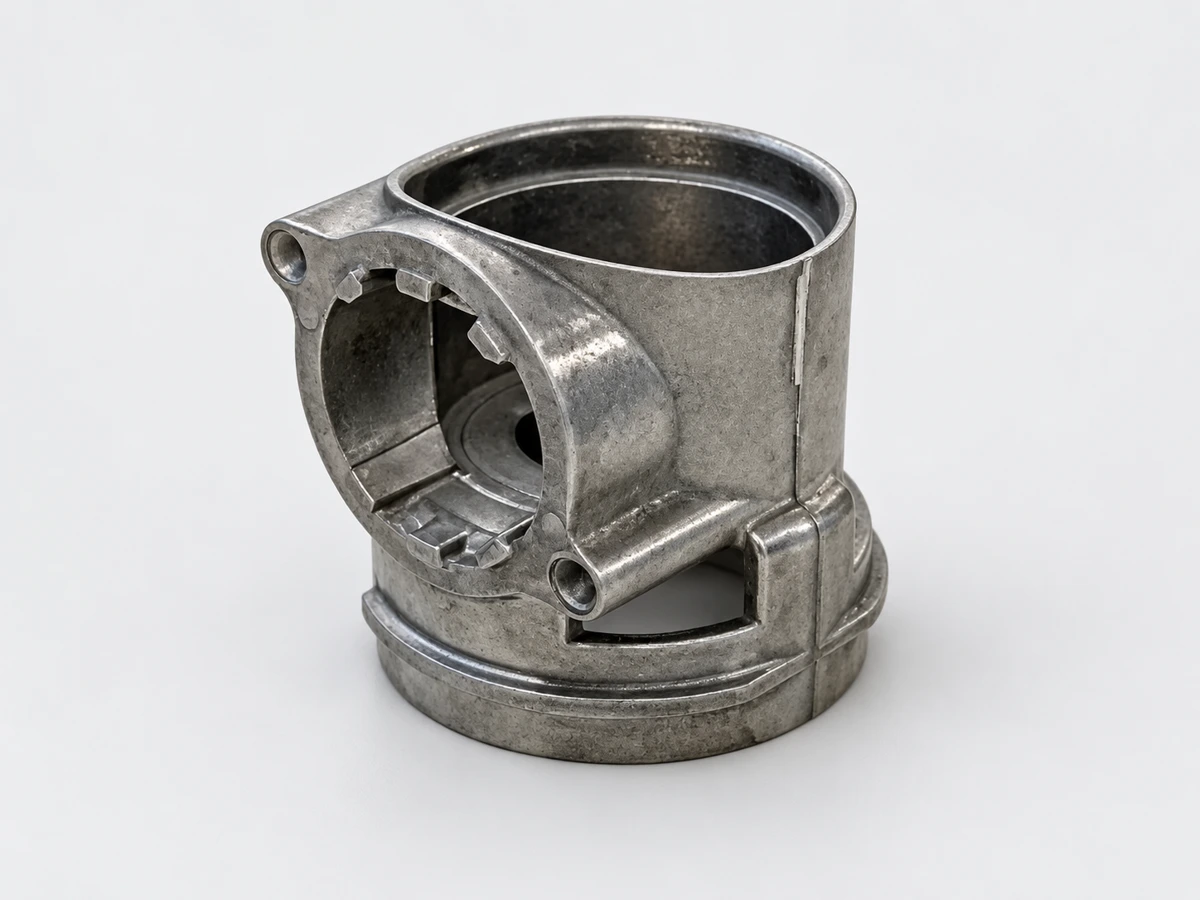

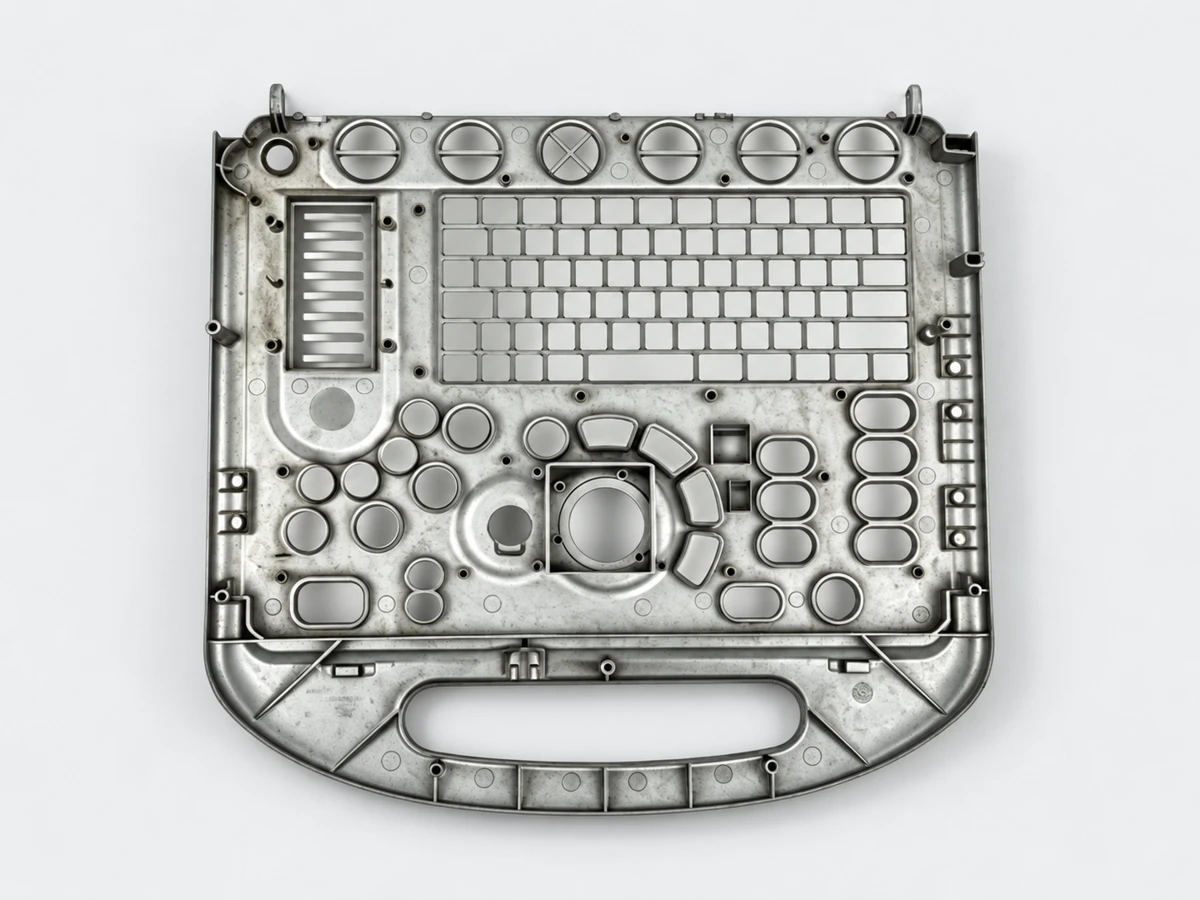

View product examples ↓Select an image to view the component in more detail.
Discuss the component geometry, wall thickness, material, critical features and finish with our team. We can review the combination of tooling, casting and secondary machining for your application.
Magnesium frames offer approximately 30% lower weight than comparable aluminum frames. JWJ combines six semi-solid magnesium machines with mold manufacturing, CNC machining and surface finishing, connecting lightweight structures with the required interfaces and finished surfaces.
A semi-solid slurry flows under shear with a different filling behavior from fully liquid metal. Controlled filling reduces the conditions that promote gas entrapment; tooling and process settings still determine the result in the actual cavity.
JWJ can cast thin walls down to 0.6 mm with uniform wall thickness. Integrating housing walls, ribs and bosses starts with a coordinated review of wall transitions, filling paths and ejection, so the thin-wall geometry can be carried through into a finished component.
Lower thermal input can reduce shrinkage and distortion. Use near-net forming for the overall shape, then assign CNC finishing to the datums and interfaces that require it. JWJ reviews the casting and machining requirements as one route.
A dimensionally acceptable casting is only one stage of an appearance part. Visible areas, machining allowances and the subsequent coating route should be defined before tooling is finalized.
JWJ has high-acceptance-rate experience with magnesium e-coated appearance parts. We connect casting, machined surfaces and coating requirements early, so a downstream finish is considered while the upstream component is being planned.
See how we approach magnesium e-coating ↗See the production environment for this manufacturing process.

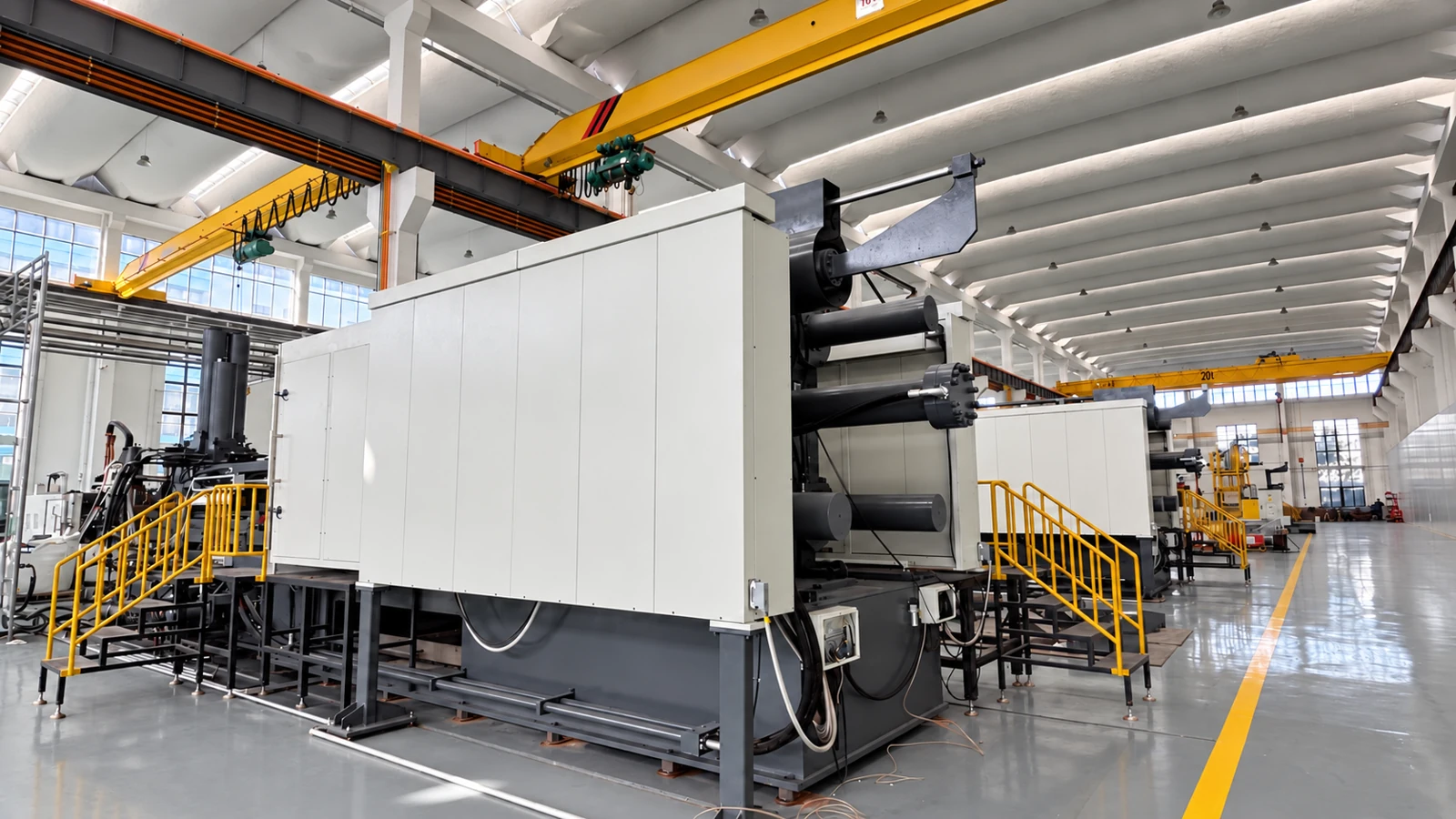

Our magnesium casting equipment uses semi-solid molding technology.

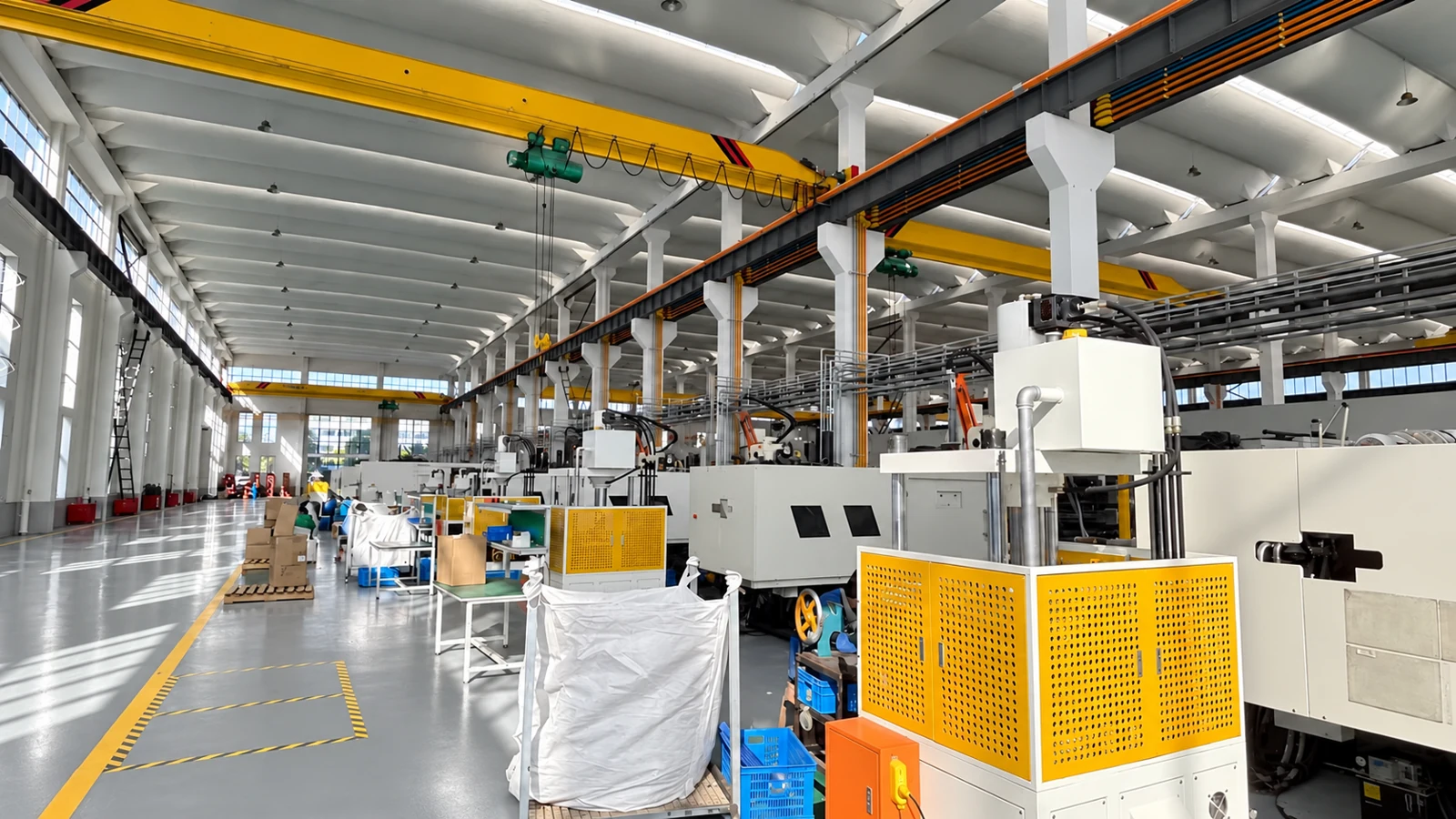

Semi-solid magnesium production equipment and its work area.

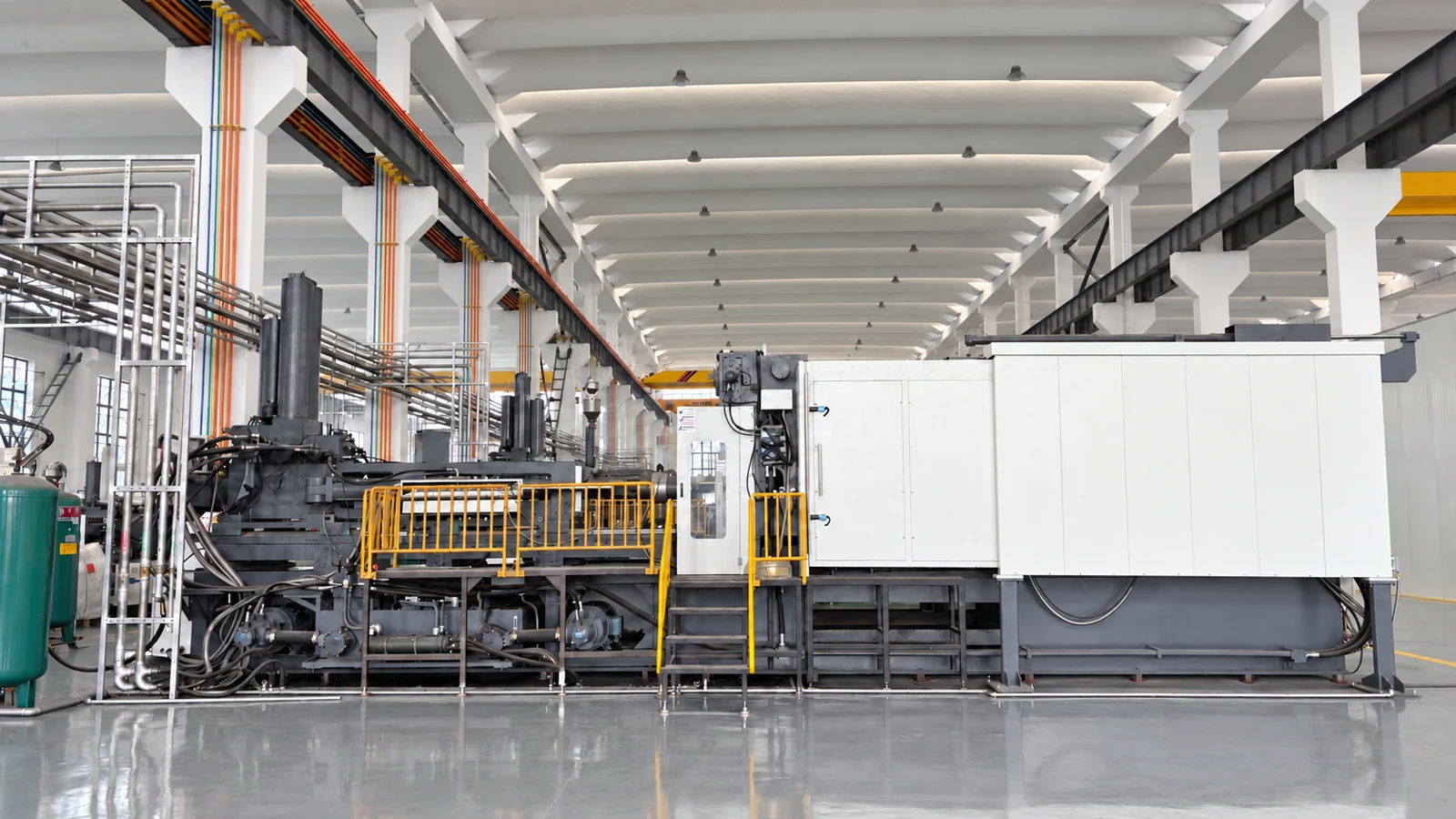

A full view of the forming equipment and supporting systems.
